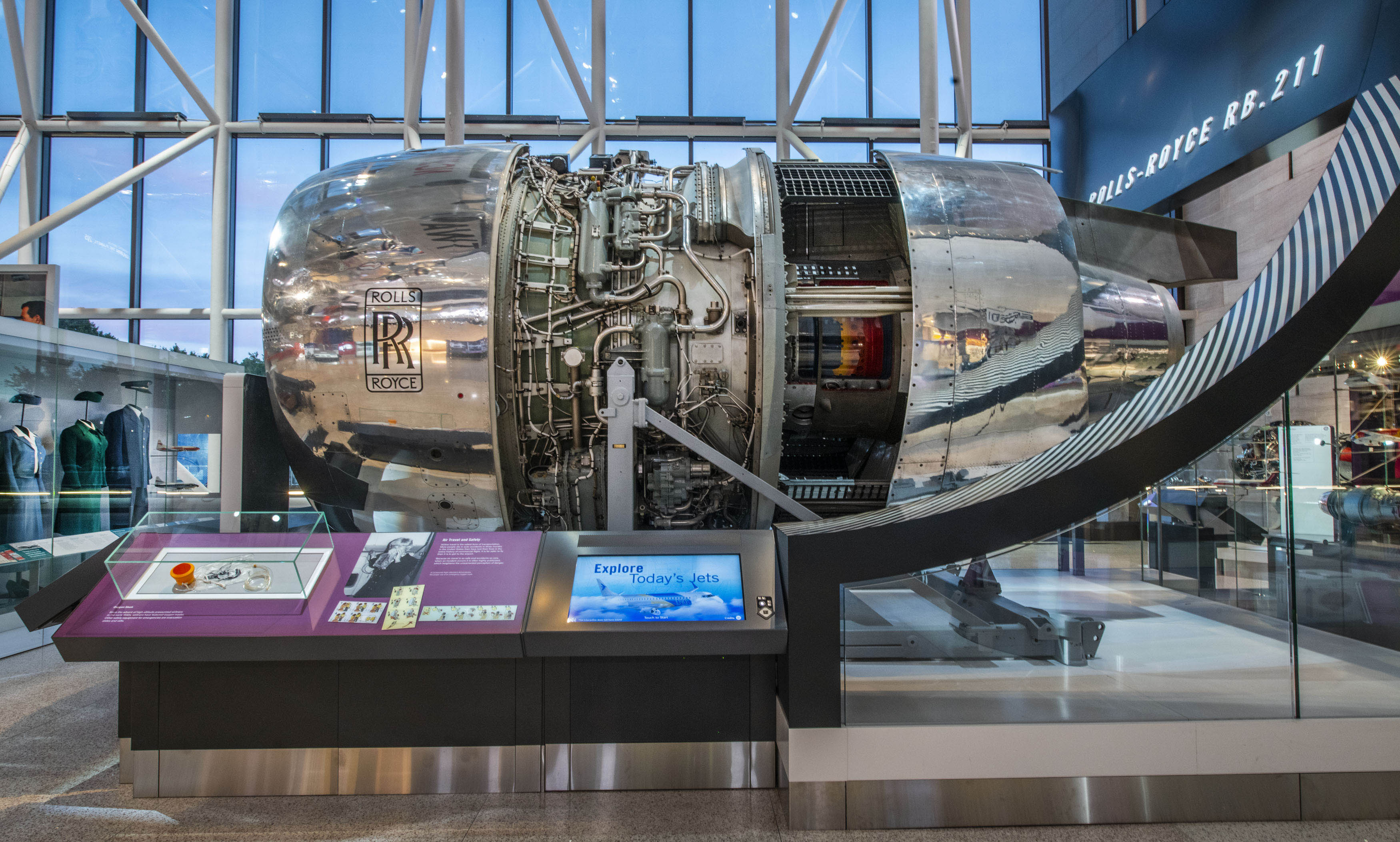

Rolls-Royce RB.211
The RB.211 uses three shafts, or spools, so sections of the compressor and turbine can turn at different useful speeds. A large fan moves much of the air around the hot core. Three spools let component groups work efficiently across a range of conditions, while the high bypass ratio produces thrust by moving a large mass of air more gently.
In depth
Complexity can improve the operating point
Three spools let component groups work efficiently across a range of conditions, while the high bypass ratio produces thrust by moving a large mass of air more gently. The design trades added parts for performance.
The RB.211's spool arrangement, fan, materials, control system, and containment requirements form an integrated architecture. Its value depends on fuel burn, thrust, weight, reliability, emissions, noise, and long-term support.
The revolution inside the engine
A jet engine takes in air, compresses it, adds fuel, and uses the resulting hot gas to produce thrust. A turbine extracts enough energy from that gas to keep the compressor turning. The arrangement sounds straightforward, but the machinery lives in a difficult combination of heat, centrifugal force, pressure, and vibration. Early practical jets depended on advances in materials and manufacturing as much as on the basic idea.
The first generation offered great promise at high speed, but fuel consumption, engine life, and throttle response limited what aircraft could do with it. The transition did not immediately make propellers obsolete. Piston aircraft and turboprops remained effective where low-speed efficiency, endurance, or operating cost mattered more than maximum speed. Aircraft were built around missions, and different missions rewarded different engines.
Later turbofans moved a large quantity of air around the hot core, improving efficiency and changing the economics of airline travel. Military engines often accepted different compromises for acceleration, compact size, or supersonic performance. A display of engines therefore contains several parallel histories: the race for speed, the effort to carry more people at lower cost, and the persistent search for machinery that crews could trust. Cross-gallery comparisons reveal why engines that look broadly similar can represent very different priorities.
