J73 Turbojet
The General Electric J73 powered the F-86H and illustrates how rapidly engine development reshaped tactical aircraft. Greater thrust supported a larger airframe, heavier weapons, and improved performance. Engines like the J73 were not merely components; they determined the range, speed, payload, and mission options available to designers and crews.
In depth
History & service
The J73 engine was developed by the General Electric Co. from the J47 engine in the early 1950s. The more powerful J73 was used in F-86H aircraft instead of the J47 as in earlier series F-86s. In September 1954, during the National Aircraft Show in Dayton, Ohio, a J73 engine powered an F-86H to a world's speed record of 649.302 mph for a 500-kilometer closed course in the General Electric Trophy Event. At the same show, the J73-powered F-86H also established a Thompson Trophy Event record of 692.818 mph over a 100-kilometer closed course.

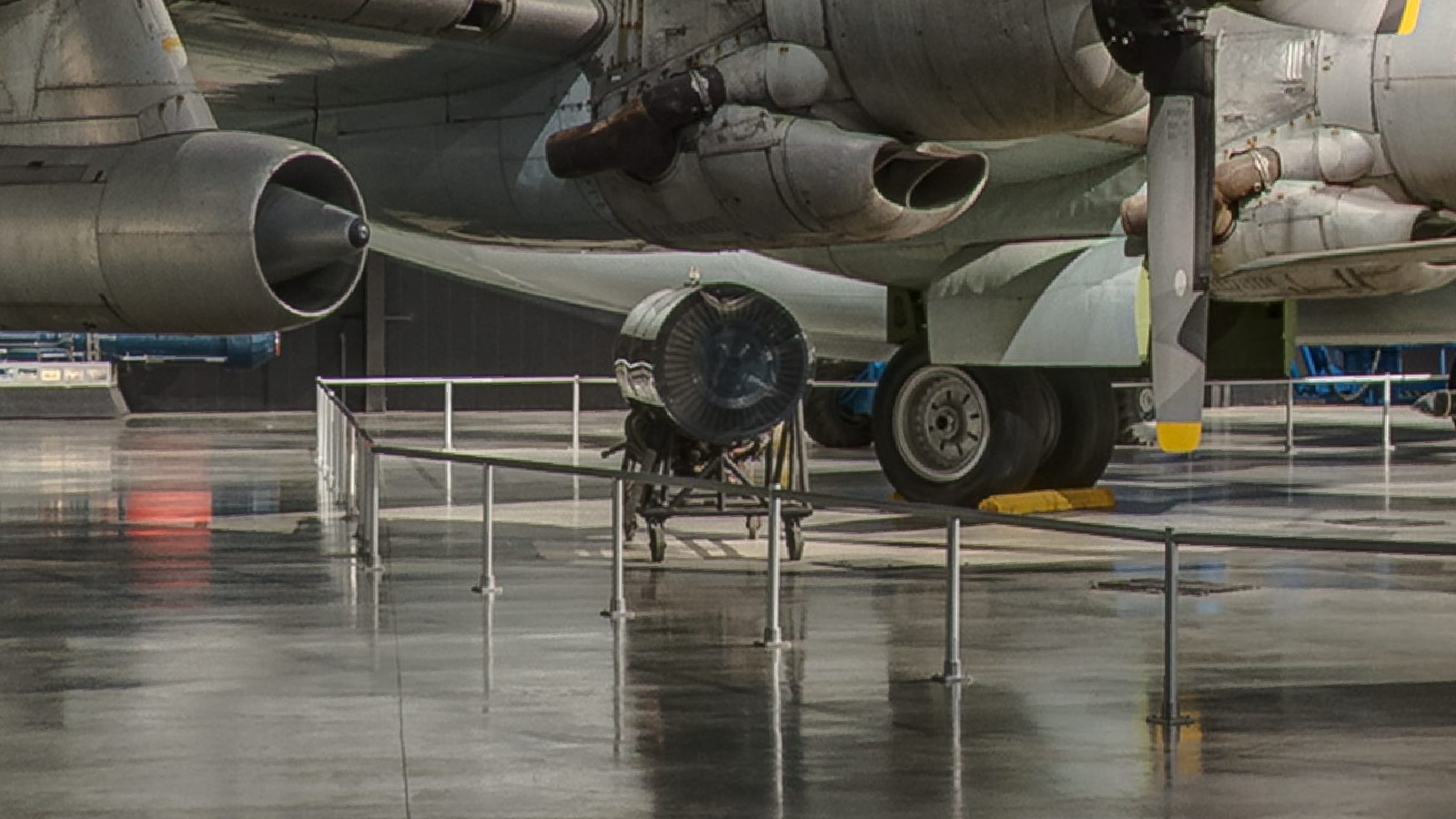

The engine is similar to the J73-GE-3 series engine used in the F-86H aircraft. Part of the case has been cut away to reveal the engine's internal components.
Details that tell the story
Axial-flow turbojet · Powered the F-86H fighter-bomber · Higher thrust enabled heavier tactical aircraft
The revolution inside the engine
A jet engine takes in air, compresses it, adds fuel, and uses the resulting hot gas to produce thrust. A turbine extracts enough energy from that gas to keep the compressor turning. The arrangement sounds straightforward, but the machinery lives in a difficult combination of heat, centrifugal force, pressure, and vibration. Early practical jets depended on advances in materials and manufacturing as much as on the basic idea.
The first generation offered great promise at high speed, but fuel consumption, engine life, and throttle response limited what aircraft could do with it. The transition did not immediately make propellers obsolete. Piston aircraft and turboprops remained effective where low-speed efficiency, endurance, or operating cost mattered more than maximum speed. Aircraft were built around missions, and different missions rewarded different engines.
Later turbofans moved a large quantity of air around the hot core, improving efficiency and changing the economics of airline travel. Military engines often accepted different compromises for acceleration, compact size, or supersonic performance. A display of engines therefore contains several parallel histories: the race for speed, the effort to carry more people at lower cost, and the persistent search for machinery that crews could trust. Cross-gallery comparisons reveal why engines that look broadly similar can represent very different priorities.
